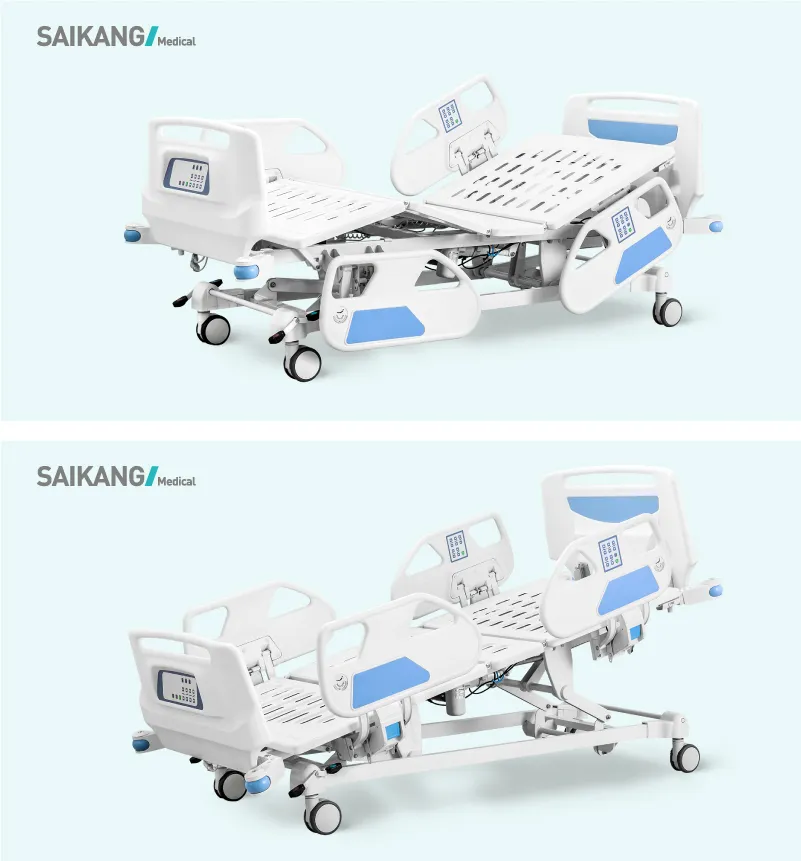

C8e Specifications of Hospital Beds with Screen Accessories

C8e Specifications Of Hospital Beds With Screen Accessories

Important Quality Control
* E-shaped large guardrail, with angled display and built-in controller, meets safety standards, providing conforting feeling for patients
* Baosteel from Fortune Global 500
* Environmental plastic can be sterilized in 100°C,tensile upto 30MPa
* Solid bed base made of 5.0mm stamped rotating plate
* Break spring keep qualified after 10,000times uninteruped break
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact
* Panasonic Robotic ensure
* 360° full smooth wedlding
* IEC60601 Safty Standard
* American motor, with UL/ROHS/EN standard. Noise under 50dB, with lifetime 20,000times movement.

Functions
* 5 Functions
* CPR- quick release back part
* One button stop, prevent the maloperation
* One button trendelenburg, release Abdominal pressure and prevent shock
* Nurse lock funtion, one button flat. Hook type optional

Accessories Details
* Stamping forming platform, smooth surface no welding scar, bearing 250KG load. Option ABS platform and resin X-ray translucent platform
* Full ABS material,tuck away side rail with built-in controller.
* From top of the guardrail to bed surface is about 345mm, more height provides better protection for patient.
* Buttom can endure 100,000times press, buffer, built-in angle indicator
* Full ABS material, with built-in controller, Buttom can endure 100,000times press
* Head and foot board can be reversable
* Patent bumper wheel detachable, max. protect the bed and patient during transportation
* Patent angle indicator
* Secure® castors
* Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time"
* ABS cover on castors joint, prevent the dust or hair stuck in. Easy to clean.
* Plastic drainage hook, movable
* Full SS IV pole, bearing 5kg
* Battery - 18times movement with 100kg bearing, 130times movement without bearing*Lifting pole - Bearing 765N force!
* Oxygen cylinder rack - adjustable for anysize tank
* Utility basket: big size 600*540*80mm
* Weighing system with memory function, accuracy 0.01kg, Kg and Ib switchable, language switchable
* 4.3inch LCD display, shows moving angle.

Technical Parameters
